Tafaasiisha Sheyga

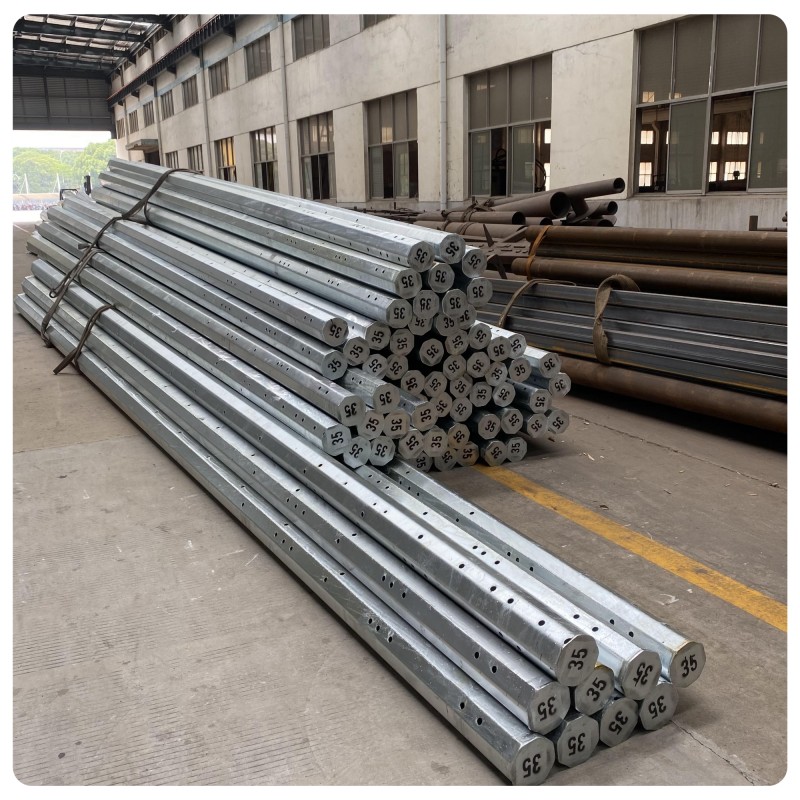

Product Name	Hot-dip Galvanized Hot Roll Steel Electric Power Pole
Voltage Grade	10-220KV
Applications	Power transmission and distribution Line
Shape	Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Surface Treatment	Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 Can be powder coated or painted according to clients' request
Material	Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Wall Thickness	2.3~18mm
Once Forming	16m Once forming without joint
Welding	Welding complies with AWS D1.1 standard. CO2 welding or submerged arc auto methods No fissure, scar, overlap, layer or other defects Internal and external welding makes the pole more beautiful in shape If customers need any other requirements of welding, we also can make adjustment ad your request
Joint	Joint with insert mode, flange mode.
Base plate	Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement.
Life Period	More than 25 years, it is according to installing environment
